TIVOLY Freze cilindro frontale HSS-E8, DIN 844BK, Z3-Z6 8030191
Conform DIN 844BK.
76,77 lei
Include TVA

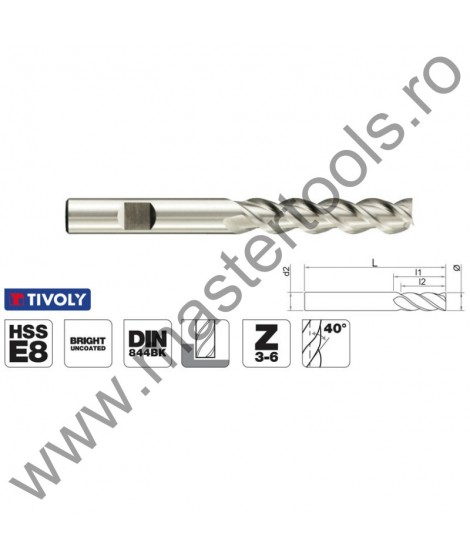

TIVOLY Freze cilindro frontale HSS-E8, DIN 844BK, Z3-Z6 8030191
Material: HSS-E8 (Co 8%).
Varf drept, fara sanfren.
Pentru oteluri cu rezistenta la rupere ≤ 1200 N/mm², aliaj cupru, otel inoxidabil, fonta.
Unghiul spirei: 40º.
Numar de dinti: Z3-Z6.
Pentru aflarea pretului va rugam sa selectati diametrul produsului dorit conform tabelului alaturat.
| Cod produs | Diametru Ø | Dim. d2 | Dim. L | Dim. l2 | Z |
| 80301910200 | 2 mm | 6 mm | 51 mm | 7 mm | 3 mm |
| 80301910250 | 2,5 mm | 6 mm | 52 mm | 8 mm | 3 mm |
| 80301910300 | 3 mm | 6 mm | 52 mm | 8 mm | 3 mm |
| 80301910350 | 3,5 mm | 6 mm | 54 mm | 10 mm | 3 mm |
| 80301910400 | 4 mm | 6 mm | 55 mm | 11 mm | 4 mm |
| 80301910450 | 4,5 mm | 6 mm | 55 mm | 11 mm | 4 mm |
| 80301910500 | 5 mm | 6 mm | 57 mm | 13 mm | 4 mm |
| 80301910600 | 6 mm | 6 mm | 57 mm | 13 mm | 4 mm |
| 80301910700 | 7 mm | 10 mm | 66 mm | 16 mm | 4 mm |
| 80301910800 | 8 mm | 10 mm | 69 mm | 19 mm | 4 mm |
| 80301910900 | 9 mm | 10 mm | 69 mm | 19 mm | 4 mm |
| 80301911000 | 10 mm | 10 mm | 72 mm | 22 mm | 4 mm |
| 80301911200 | 12 mm | 12 mm | 83 mm | 26 mm | 4 mm |
| 80301911400 | 14 mm | 12 mm | 83 mm | 26 mm | 4 mm |
| 80301911500 | 15 mm | 12 mm | 92 mm | 32 mm | 4 mm |
| 80301911600 | 16 mm | 16 mm | 92 mm | 32 mm | 4 mm |
| 80301911800 | 18 mm | 16 mm | 92 mm | 32 mm | 4 mm |
| 80301912000 | 20 mm | 20 mm | 104 mm | 38 mm | 4 mm |
| 80301912200 | 22 mm | 20 mm | 104 mm | 38 mm | 4 mm |
| 80301912500 | 25 mm | 25 mm | 121 mm | 45 mm | 6 mm |
| 80301912800 | 28 mm | 25 mm | 121 mm | 45 mm | 6 mm |
| 80301913000 | 30 mm | 25 mm | 133 mm | 45 mm | 6 mm |
| 80301913200 | 32 mm | 32 mm | 133 mm | 53 mm | 6 mm |
80301910300*
